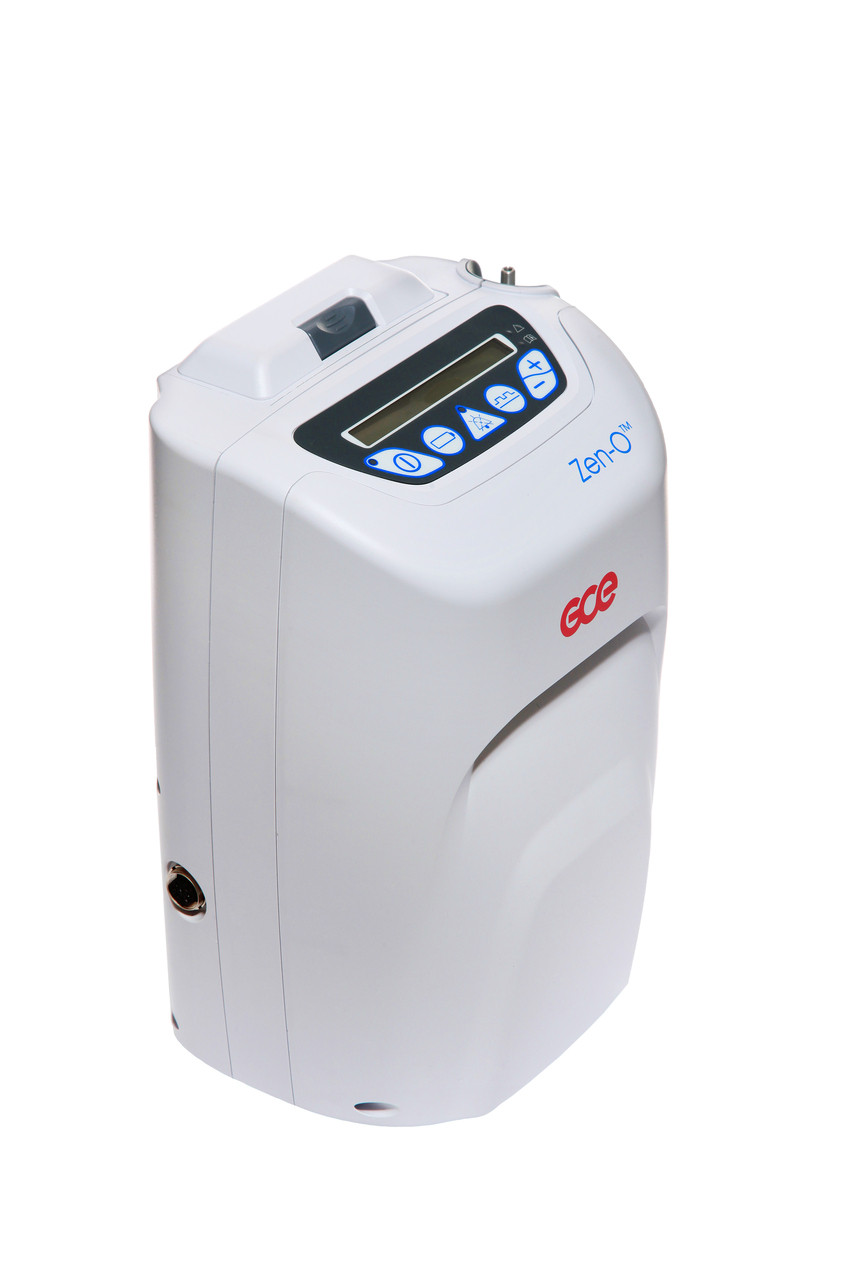

Description
The Zen-O portable oxygen concentrator is a best in class portable oxygen concentrator offering pulse and continuous oxygen delivery modes for active patients requiring oxygen therapy.
Zen-O features breath sensitivity and Rate Response Therapy™ (RRT), which automatically adjusts to the patient‘s demands.
Zen-O™ delivers up to 2 litres of oxygen per minute in response
to the patient’s need. Unlike other devices that deliver a fixed
amount of oxygen, Zen-O™ automatically increases oxygen
delivered if a patient’s breath rate rises.
• The Zen-O™ offers patients the best of both worlds, allowing
patients to alternate between continuous flow and pulse mode
oxygen therapy.
• Zen-O™ is designed with patients in mind, it is simple to use

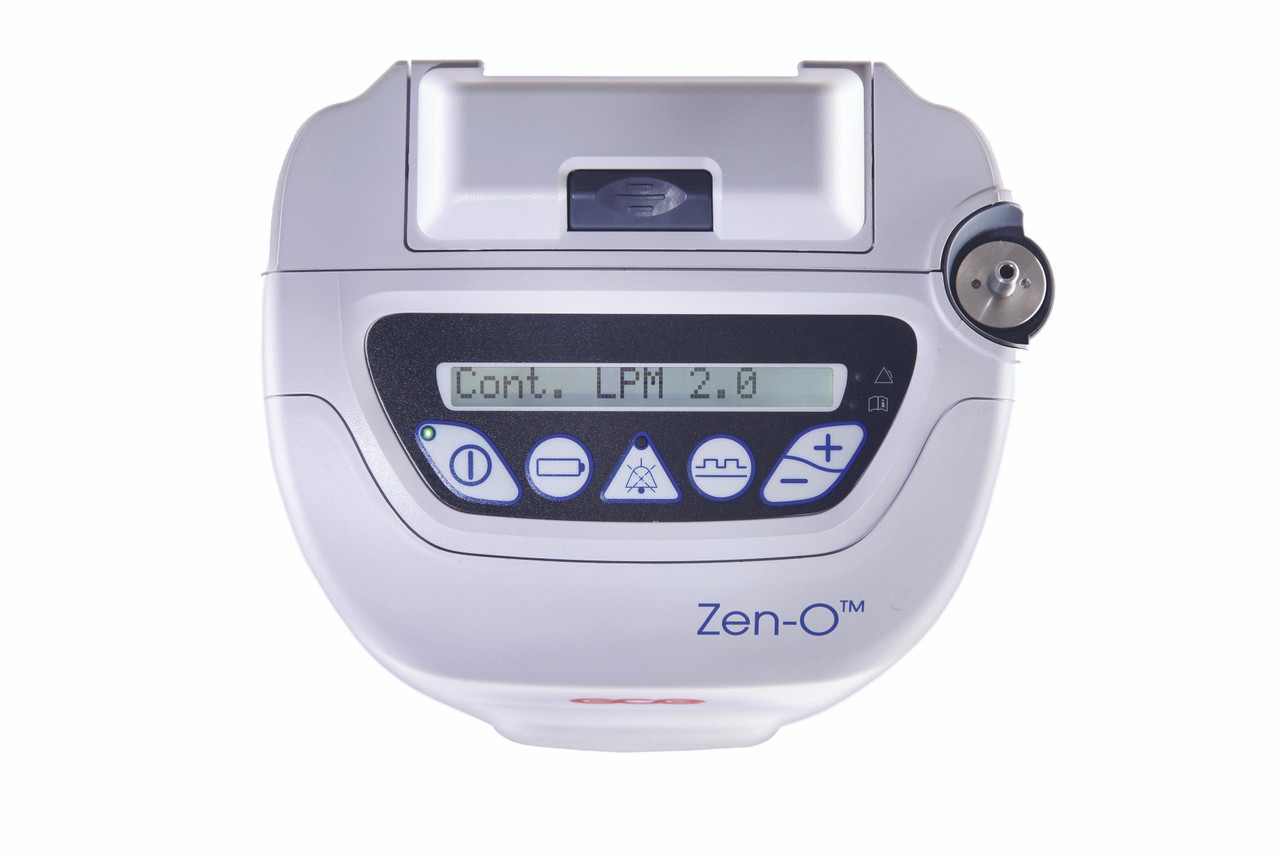

with intuitive button operation and LCD display.
• The Eco Mode feature allows users to switch the operation of
the device from Rate Responsive to Fixed Minute Volume for
longer battery duration.
• The Auto Mode feature activates after 60 seconds if no breath
is detected. The device will automatically deliver pulses at a rate
of 18 breaths per minute to the user, ensuring users continue
receiving some oxygen if the cannula is dislodged.
• Zen-O™ is designed with sieve beds that can be replaced easily
by most homecare providers eliminating the need to return the
device to a distributor.
• Zen-O™ is rugged and is supplied with a 3 year warranty or
15,000 hours of total use, giving you the assurance of quality
and reliability.
• Zen-O™ is manufactured in the UK and USA to the exacting
standards of the European Medical Directive and United
States Food and Drug Administration (FDA).
• The Zen-O™ is built to last and is supplied with 3 years warranty
and 2 years on sieves (additional sieves 12 months). 1 year on
all accessories.
Accessories
Spare Parts: Part Number:
Zen-O™ Concentrator (1 battery package) RS-00502-AUS-S
Zen-O™ Concentrator (2 battery package) RS-00502-AUS-D

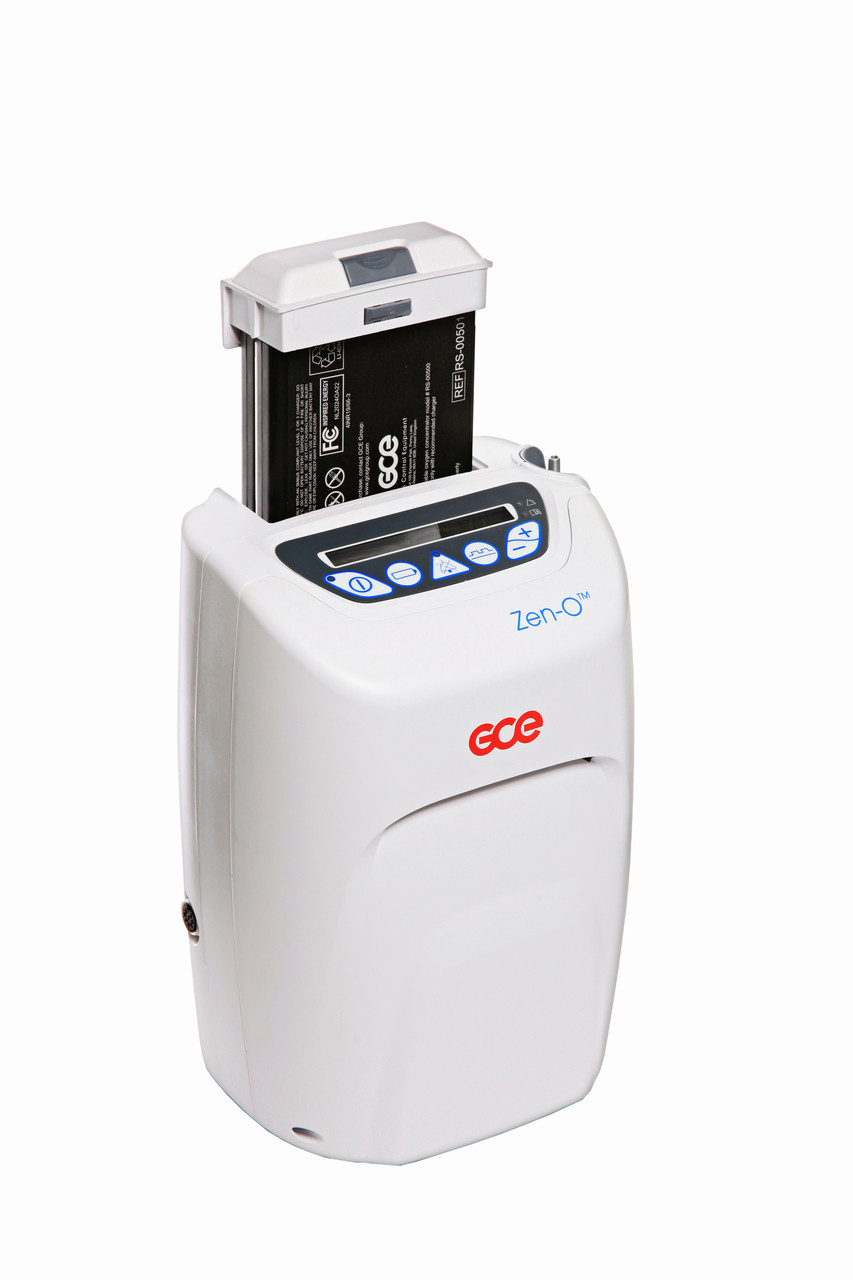

Zen-O™ Battery RS-00501

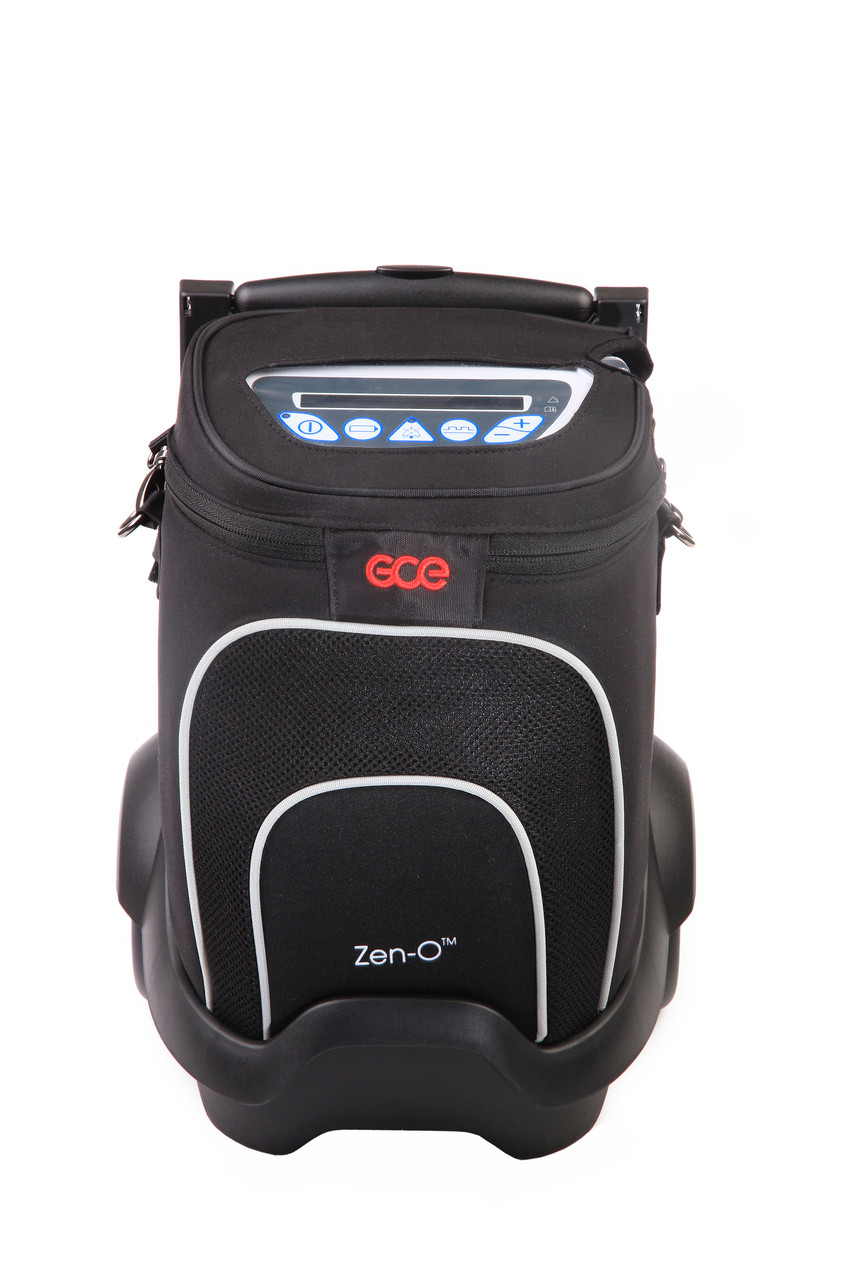

Zen-O™ Carry Bag RS-00509

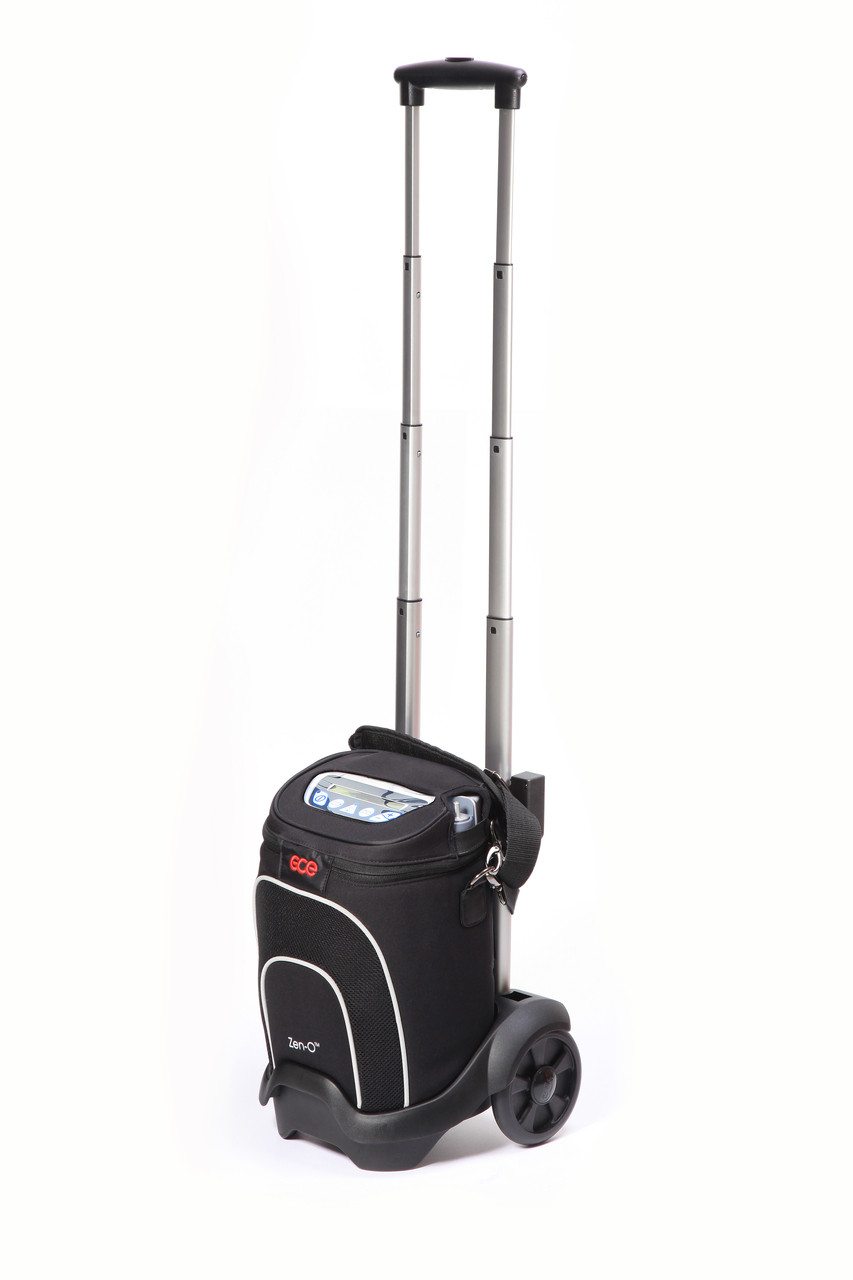

Zen-O™ Cart RS-00507
Zen-O™ DC Adapter RS-00508
POC Filter Wrench RS-00511
POC Cannula Filter pk of 10 RS-00512
Sieve Bed Assembly RS-00513
Zen-O™ AC Power Supply RS-00520
Accessories Bag RS-00523
External Battery RS-00542
Frequently Asked Questions
Q: Is Doctor’s certificate required to obtain a Portable Oxygen Concentrator?
Technically No.
Medical grade Oxygen is classified as a pharmaceutical drug and requires a prescription. The purity of this product is 99.5%.
Concentrators produce supplementary Oxygen only not medical grade. So technically a concentrator can be sold without a prescription. However, the product needs to be used under the guidance of a clinician. Where there is no prescription provided to you, e.g. web shop sales, use the disclaimer below:
“Oxygen must only be administered in line with the prescription and advice from a qualified medical professional. We encourage you to discuss your device options and device suitability with your prescribing medical practitioner prior to purchase to ensure this device suits your Oxygen requirements. If the product is used or the packaging seals are broken, the device cannot be returned for change of mind or incorrect choice.
Some devices produce Oxygen in a pulse dose which means you receive Oxygen when you breathe in.
Q: Is the Zen-O portable Oxygen concentrator complying with Australia’s TGA regulations?
YES, The Zen-O is fully compliant and registered with TGA and possess ARTG Identifier ARTG 327300.
Q: What accessories are supplied with Zen-O?
Every Zen-O Portable Oxygen Concentrator is supplied with a Zen-O Carry Bag, Zen-O Pull Cart, Accessories Bag, Zen-O Battery (1 or 2), User Manual, Quick Start Guide, AC & DC Power Packs, and Australian Plug. Replacement parts can be sourced using the relevant item numbers.
Q: What is the maximum flow rate for the Zen-O portable Oxygen concentrator?
Zen-O is designed to deliver up to 2 litres of Oxygen per minute in either pulse or continuous mode. Even at its maximum flow Zen-O will maintain the specified Oxygen purity levels of 87 – 96%.
Q: What does Zen-O weigh?
Zen-O weighs just 4.66kg (10.27lbs) with one battery inserted into the device and 5.31kg (11.7lbs) with two batteries. It
does not include the carry bag and/or pull cart. The Zen-O rechargeable battery weighs 652 grams on its own.
Q: How long will the battery/batteries last with Zen-O?
• You can expect up to 4 hours run time on a single battery unit in pulse mode setting 2 @ 18 BPM.
• You can expect up to 8 hours run time on a dual battery unit in pulse mode setting 2 @ 18 BPM.
• You can expect to achieve 45 minutes run time on a single battery unit in continuous mode.
• You can expect to achieve 90 minutes run time on a dual battery unit in continuous mode.
Note: The above are approx. only as battery deterioration will affect these numbers.
Q: Is Zen-O suitable for air travel?
Zen-O has been manufactured to high standards and meets the requirements of the Federal Aviation Administration (FAA); this is confirmed by the red text on the back of the device that states
“The manufacturer of this POC has determined this device conforms to all applicable FAA acceptance criteria for POC carriage and use on board aircraft”.
IMPORTANT: Air carriers may require you to bring enough batteries to power the device for at least
150% of the expected maximum flight duration.
Q: Is Zen-O suitable for 24/7 use?
Zen-O from GCE Healthcare is robust and durable and is suitable for 24/7 use. Zen-O’s three year or 15,000 hours of total use device warranty gives home Oxygen providers the assurance of quality.
Users also benefit as the device can be used round the clock without the need to switch to an alternative Oxygen delivery system when at home. Patients should seek guidance from their healthcare professional on the suitability of the device for night use.
Q: Is the Zen O CPAP/Bi PAP compatible.
Yes, the Zen O can be used with a CPAP/Bi PAP unit if the continuous oxygen dosage setting you require is within the Zen O’s 2 LPM range. The determining factor of how you will use oxygen with your CPAP/Bi PAP machine is the type of mask and/or tubing you are using.
Q: How much power is required to run a Zen O portable oxygen concentrator?
The Zen O requires a stable 150W of power. It will operate in the 100-240V ac 50-60Hz ranges. It’s designed for home use so the power supply should be of a standard as for other domestic appliances in terms of protection, surges and transients.
Q: What size generator is required to run a Zen O portable oxygen concentrator?
The AC power adapter requirements i.e. 100-240 VAC (+/-10%) 50-60 Hz to give 24VDC 6.25A then you could plug the AC adapter straight in. Allowing for some contingency our suggestion would be a 200 Watts, and a 0.25 kVA rated generator should be sufficient.
Q: What Type of generator is required to run a Zen O?
Inverter generators are recommended for the Zen O portable oxygen concentrators due to their ability to produce cleaner power, which is safer for sensitive medical equipment, and their quieter operation compared to traditional generators
CLINICAL INFORMATION
Q: What is a Bolus?
Bolus means the amount or dose of Oxygen delivered to a patient which is triggered by the breath rate of the patient, when using an Oxygen concentrator operating in pulse mode. Bolus is used interchangeably with Pulse.
Q: What is Rate Responsive Technology?
When in pulse mode Zen-O increases the amount of Oxygen delivered as the patient’s breath rate
increases up to 2 litres per minute. For example, if the patient exerts himself by walking faster than normal, Zen-O will maintain a constant bolus and keep up with the patient’s breath rate (up to 40 breaths per minute). RRT helps keep patients saturated.
Q: What settings do we have on Zen-O?
Zen-O has settings 1 – 6 (with 0.5 increments) in pulse mode, and 0.5 lpm to 2 lpm in continuous mode (0.5 increments). Zen-O offers a total of 11 pulse settings and 4 settings in continuous mode, a total of 15.
Q: What sort of cannula is used for Zen-O?
We recommend that a high flow cannula (up to 15 LPM) such as salter labs 1600HF or 1600soft is used with Zen-O, particularly in pulse mode.
Q: Are the settings in Pulse and Continuous modes the same?
No, the setting in Pulse mode does not equate to the same value in Continuous mode, for example setting 2 in Pulse mode is not the same as 2lpm in continuous mode. Patients must have a setting determined for them by a healthcare professional following an assessment.
Q: How does a patient determine the correct setting on Zen-O?
The correct setting on Zen-O for a patient must be determined by a healthcare professional following an oxygen assessment. The assessment will enable the healthcare professionals determine the best setting required to meet the oxygen needs of the patient.
Q: What is the noise level for both pulse and continuous modes?
• Sound Pressure level of 38 dB(A) at setting 2 in pulse mode.
• Sound Pressure level of 46dBA at setting 6 in pulse mode.
• Sound Pressure level of 52dBA at setting 2 continuous mode.
Q: What is the operating altitude range?
Use of the device at altitudes above 4000 m (13,000 feet) relative to sea level may adversely affect the flowrate and Oxygen concentration supplied.
Q: Can the customer change the Sieve beds themselves? And do they need any special tools.
The customer can change the sieve beds themselves with the use of standard tooling. An Allen key
to remove the M3 screws to remove the front cover and a 7mm socket to remove the M4 nuts holding down the sieve beds. Please confirm this with your distributer.
Q: Approx. how often do the sieve beds need to be replaced?
Sieve beds generally have a life expectancy of between 12 to 18 months depending on the climate and usage.
Q: What is the power rating for the Zen-O battery?
The battery rating for Zen-O is 96Wh, Nom 6.7Ah.
Q: Can the device be used while charging in the vehicle?
Yes, the device can be used while in a vehicle and charging except at 2 continuous. At this setting the device will not charge but maintain battery power and will deliver oxygen.
Q: Do I need to remove the machine from the carry bag when charging?
No. The unit will charge fine when in the carry bag. What is important is that the air intake situated at the rear of the unit below the label is unobstructed or covered.
Q: Can the battery be used of an extension lead?
Yes, the device can be run of an extension lead if required. Please ensure the use of a UL listed 15amp cord and ensure that no other devices are connected to the same cord or outlet.
Q: How long will the battery/batteries last with Zen-O?
• You can expect up to 4 hours run time on a single battery unit in pulse mode setting 2 @ 18 BPM.
• You can expect up to 8 hours run time on a dual battery unit in pulse mode setting 2 @ 18 BPM.
• You can expect to achieve 45 minutes run time on a single battery unit in continuous mode.
• You can expect to achieve 90 minutes run time on a dual battery unit in continuous mode.
Q: Do we have an external desktop charger?
Yes, External desktop battery chargers are available (suitable for Zen-O and Zen-O lite) and can be purchased using the following item number: RS-00542 – External charger with AU plug.
Q: How do the batteries discharge / deplete on the Zen O?
The two batteries in the Zen- O each individually communicate with the battery board and can charge up at the same time depending on factors such as temperature and charge levels.
Discharge of the batteries is based on highest battery voltage (charge) will deplete first until levels are even between batteries. Once levels are even the batteries should deplete charge levels fairly evenly.
Q: How quickly does the battery charge?
If the device is switched off or in use at all settings except 2 litres continuous, the battery will charge fully in 3hrs or less (with one battery). This is because at 2 litres continuous the device is running at maximum capacity and could take up to 4:30 hrs
